Color Accuracy
The Vivitek D537W’s color performance is very good, overall.

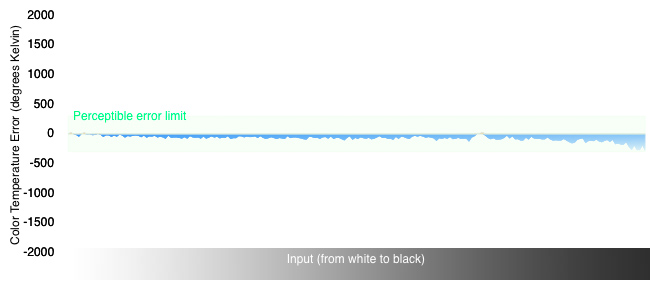

Color Temperature (10.00)
The Vivitek D537W’s color temperature was remarkably consistent. From the brightest to the darkest signal intensity, you won’t see a single deviation. Sure, there’s a little wavering that you can see in the chart below, but all of it is too minor to be perceived by the human eye.
| Color Temperature |
|---|
 |

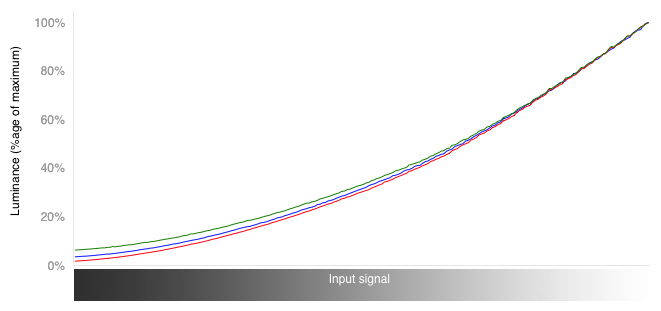

RGB Curves (8.14)
The color performance of the Vivitek D537W was exemplary in our RGB testing. The curves were smooth, the three channels moved in unison, and we saw good detail in both the shadows and the highlights. This performance is better, sometimes far better, than the three projectors we’ve pulled in for comparison.
| RGB Curves |
|---|
 |
| Red Response Comparisons | |
|---|---|
| Ideal Response |
|
| Vivitek D537W |  |
| ViewSonic PJD6531w |  |
| Canon LV-8310 |  |
| Optoma HD66 |  |
| Green Response Comparisons | |
|---|---|
| Ideal Response |
|
| Vivitek D537W |  |
| ViewSonic PJD6531w |  |
| Canon LV-8310 |  |
| Optoma HD66 |  |
| Blue Response Comparisons | |
|---|---|
| Ideal Response |
|
| Vivitek D537W |  |
| ViewSonic PJD6531w |  |
| Canon LV-8310 |  |
| Optoma HD66 |  |

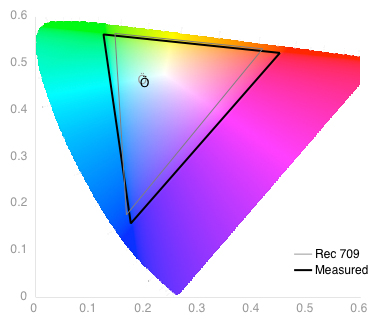

Color Gamut (3.56)
The Vivitek D537W was not matched up too closely to the rec. 709 color standard, but it wasn’t any further off than the three similarly priced projectors we used for comparison. The greens were a little yellow, the reds were a little orange, and the blues were a little light-blue. Overall, the performance is not too bad.
| Color Gamut |
|---|
 |
Below is a chart with all the hard details about the color gamut test.
| u' (rec.709/measured) | v' (rec.709/measured) | Error | |
|---|---|---|---|
| Red | 0.4188 | 0.5316 | 0.033065087 |
| Green | 0.1461 | 0.5645 | 0.021194575 |
| Blue | 0.1675 | 0.1765 | 0.020208167 |
| D65 (white point) | 0.2017 | 0.463 | 0.006580274 |
